● Main Usage

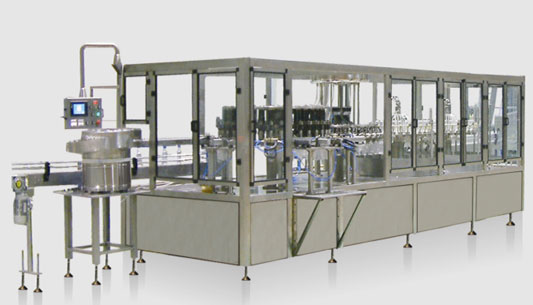

This machine is mainly applicable for production of PP plastic bottles bottle infusion that can finish a series of producting procedures automatically, such as: air washing, water washing, liquid filling and welding, sealing compound cap.
● Performance characteristics
Wash potting trinity, compact structure, covers an area of less, the decrease of the intermediate links of pollution.
The clamping manipulator process conveying, bottle, not bottleneck does not wear the bottle, specifications easy to change.
The continuous rotation cleaning method, rather than JianJieShi and GenZongShi cleaning method, ensure the high-speed production of cleaning time.
The bottle blowing into a way, don't crowded bottle, BuKa bottle, realized the fast on the bottle and on-line production.
Adopt pneumatic diaphragm valve timing constant pressure filling way, and guarantee the measurement precision, but I Ann (CIP), in the cleaning in the disinfection (SIP).
The fluctuation double the heating plate heat, and can be adjusted freely heating temperature, suitable for cap and bottle of different temperature melt sealing requirements.
Unique heating board structure can guarantee the heating plate after heated free extend, reduce the deformation.
The unique manipulator catch cover structure, make sure to take cover, accurate, welding stress even, fusion did face even firmer.
Questions have not filling, no bottle not send cover etc function, can achieve automatic exhaust function.
PLC control, man-machine interface operation, can be free to set parameters, convenient and practical, high automation.
● Technology parameters
Type: SSY300
Applicable specifications: 100 ml, 250 ml, 500 ml
Production capacity: 10000-18000 bottles/hour (250 ml calculation)
Total power: 48 KW, 380 V, 50 HZ ac
The main motor power: 5 KW
Clean compressed gas pressure: 0.5-0.6 Mpa
Gas consumption: 0.4 Mpa, consumption clean compressed air 4-5 m3 / minutes (including gas wash dosage)
Blunt water pressure: 0.3 0.4 Mpa
Purified water consumption: 0.3 MPa, the consumption of 2400 L/h
Inject water consumption: 0.3 MPa, the consumption of 2400 L/h
Overall size: 10420×2460×2400 (mm) (L×W×H)
Total weight: 8500 kg
